Portable Screen Plant – FabTec Portable 5’ wide x 16’ long Three Deck Incline Vibrating Screen

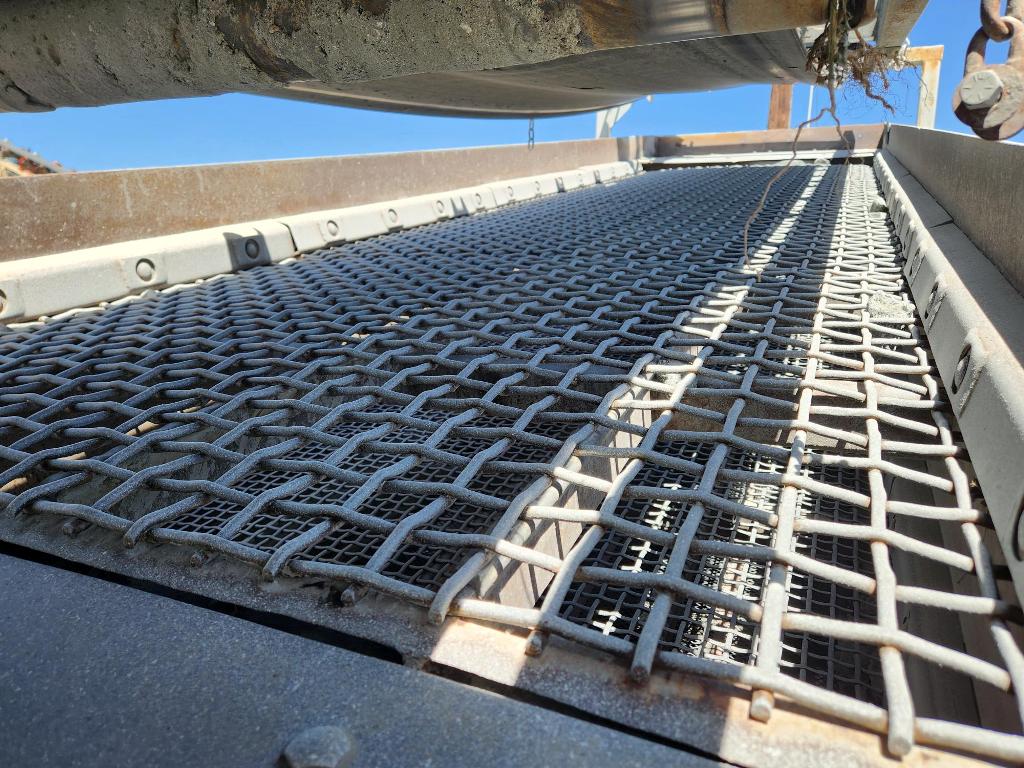

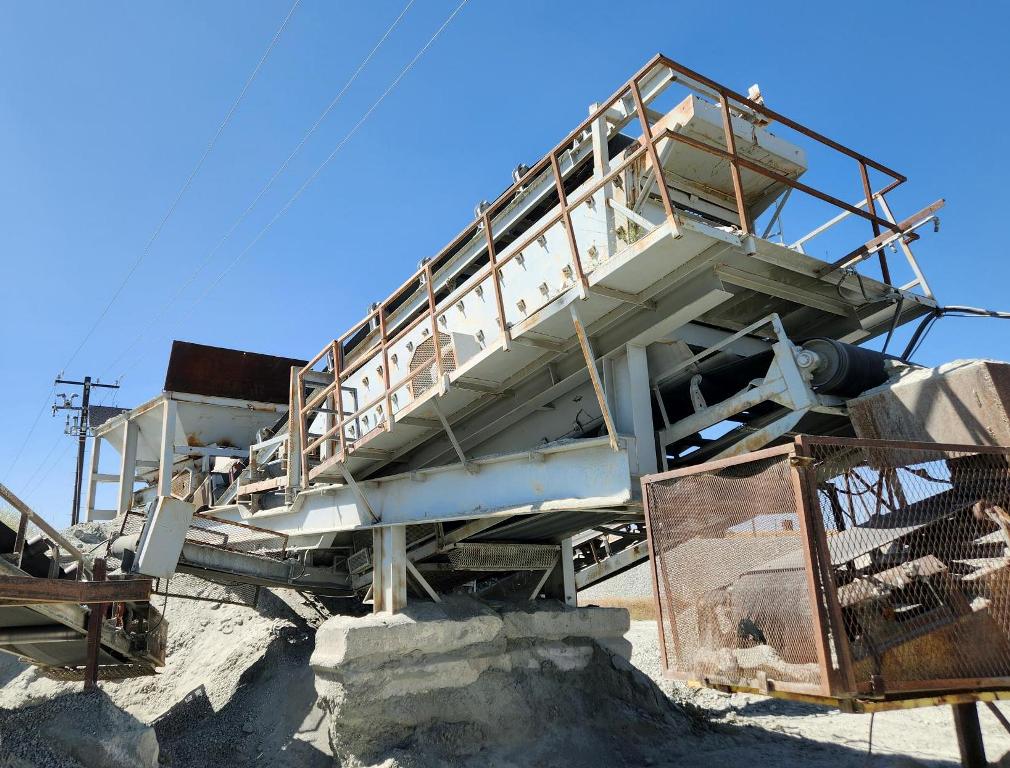

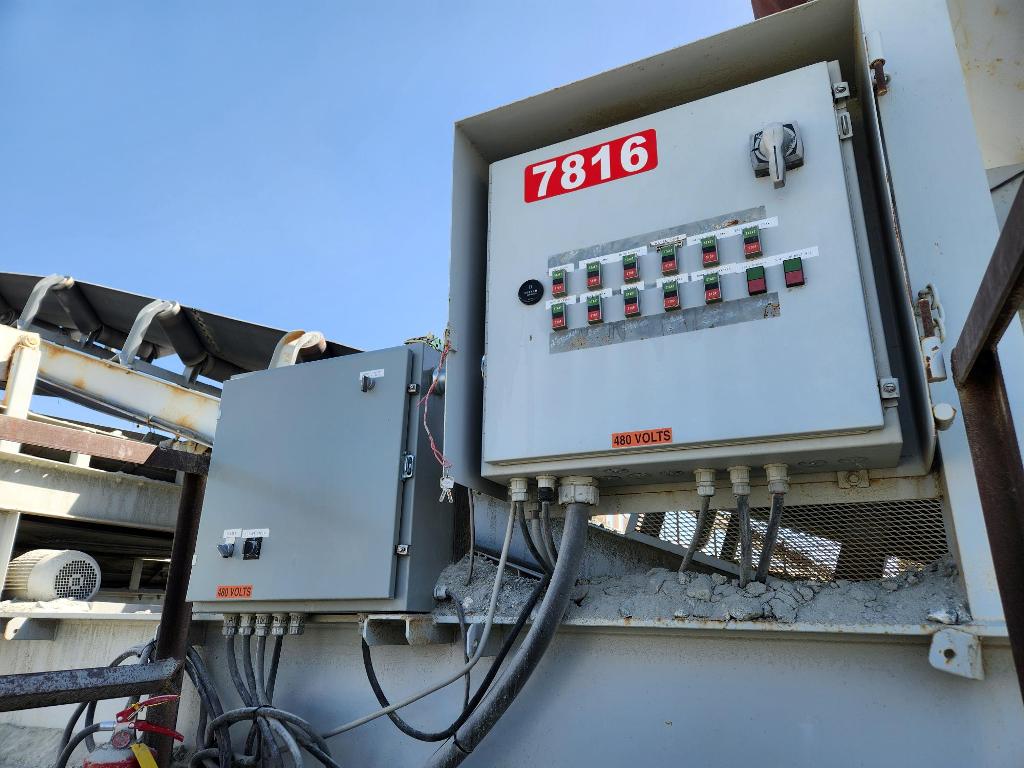

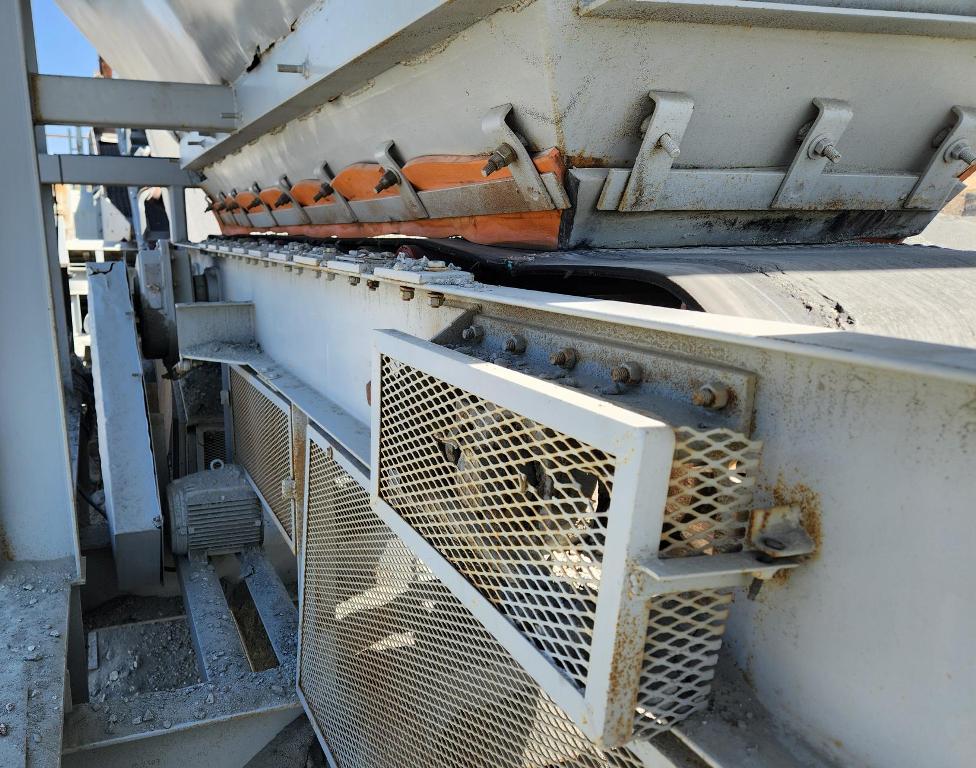

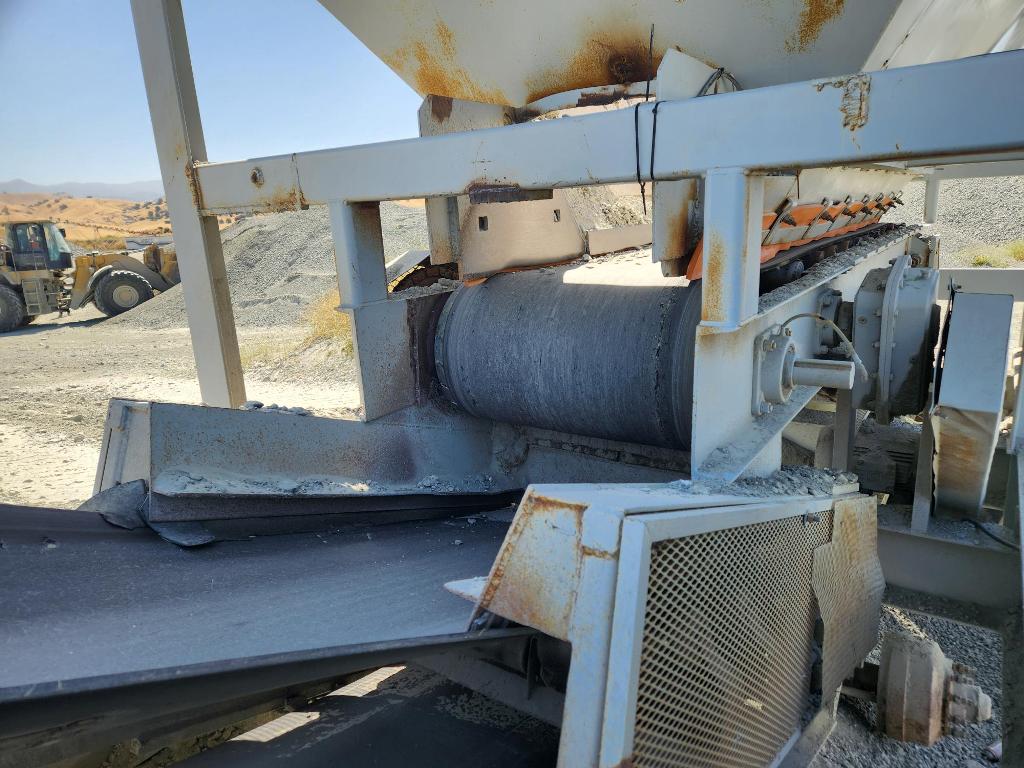

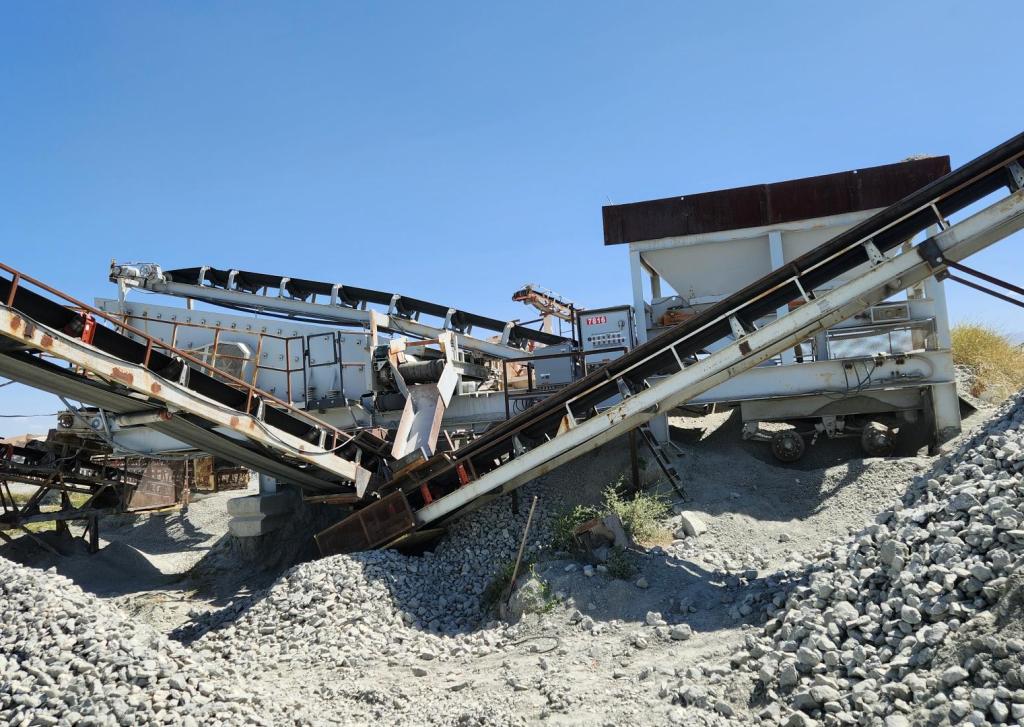

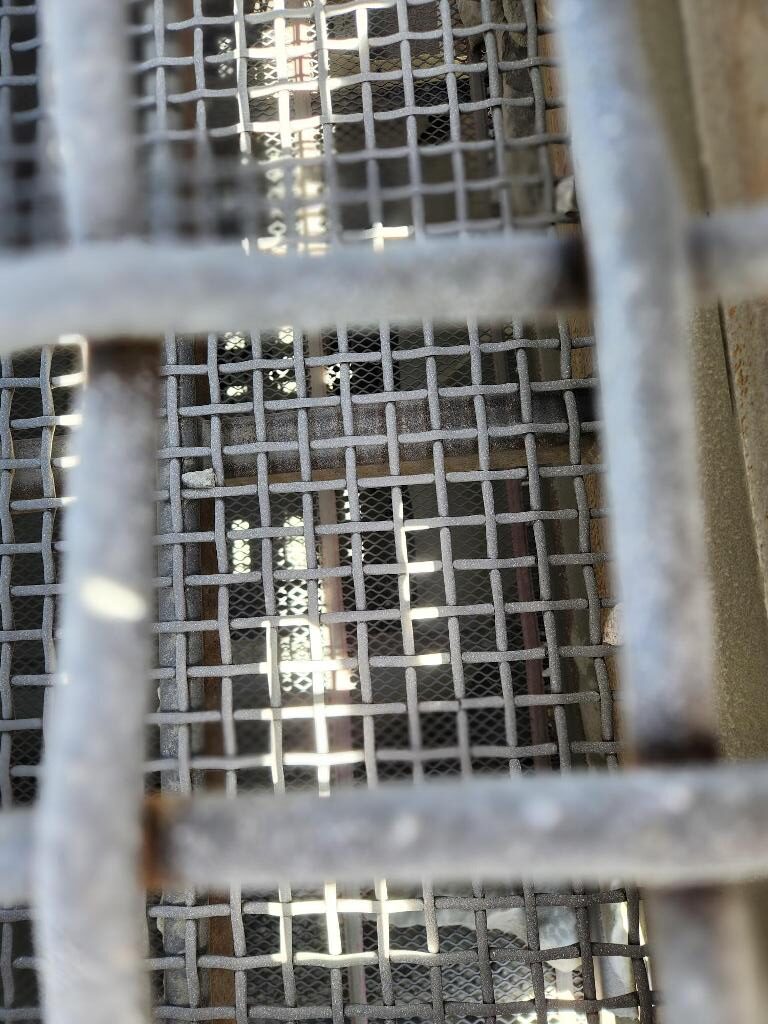

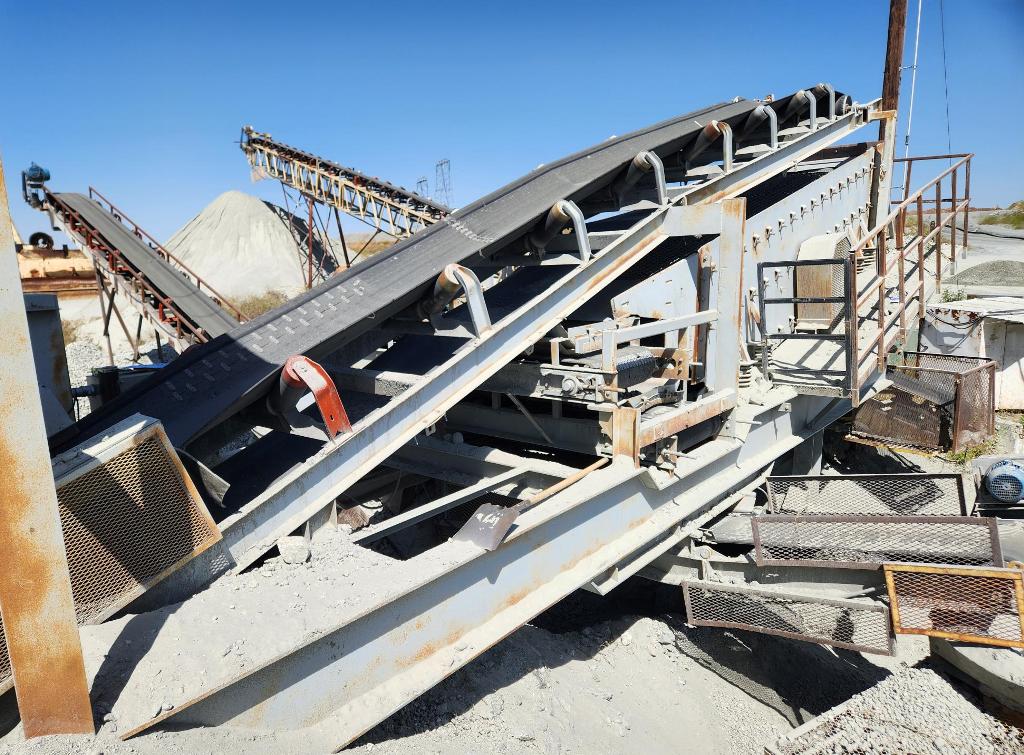

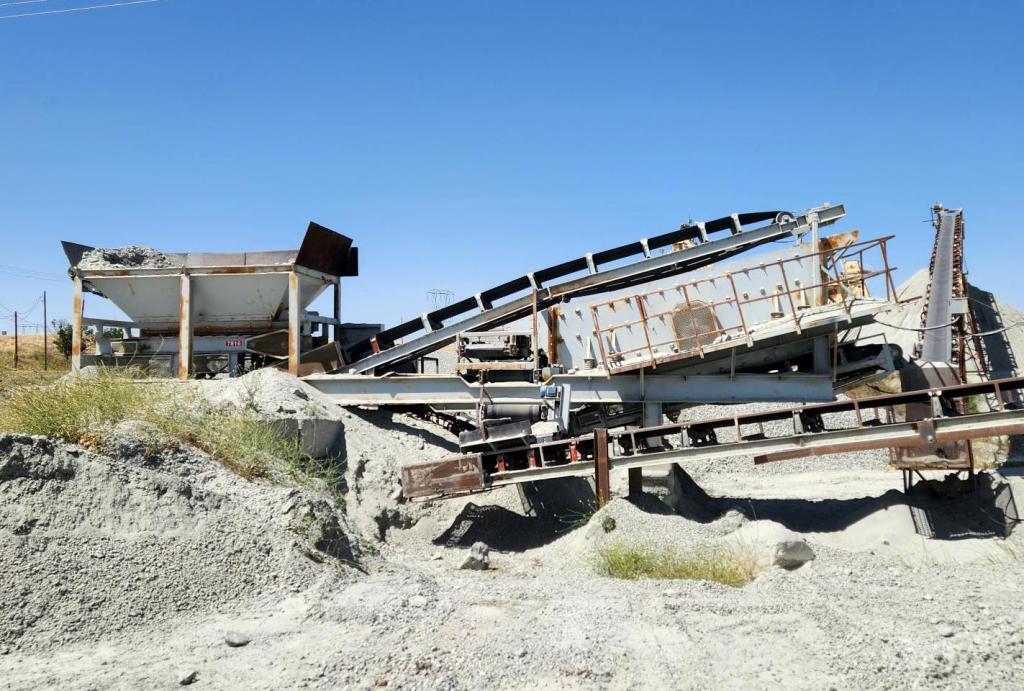

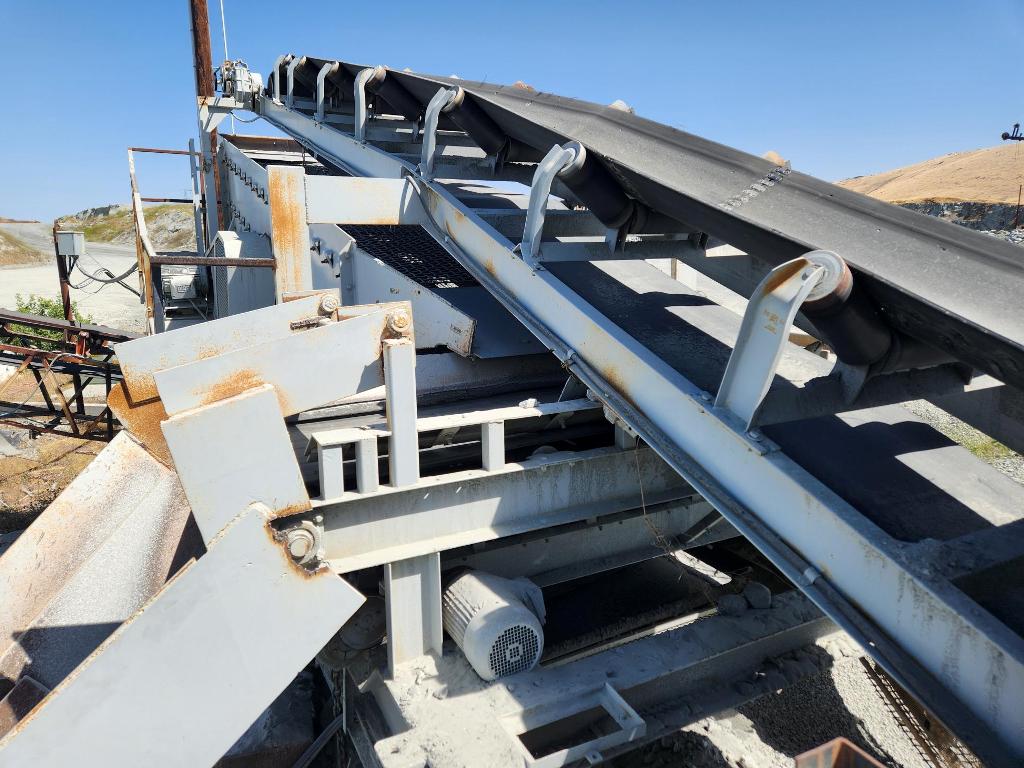

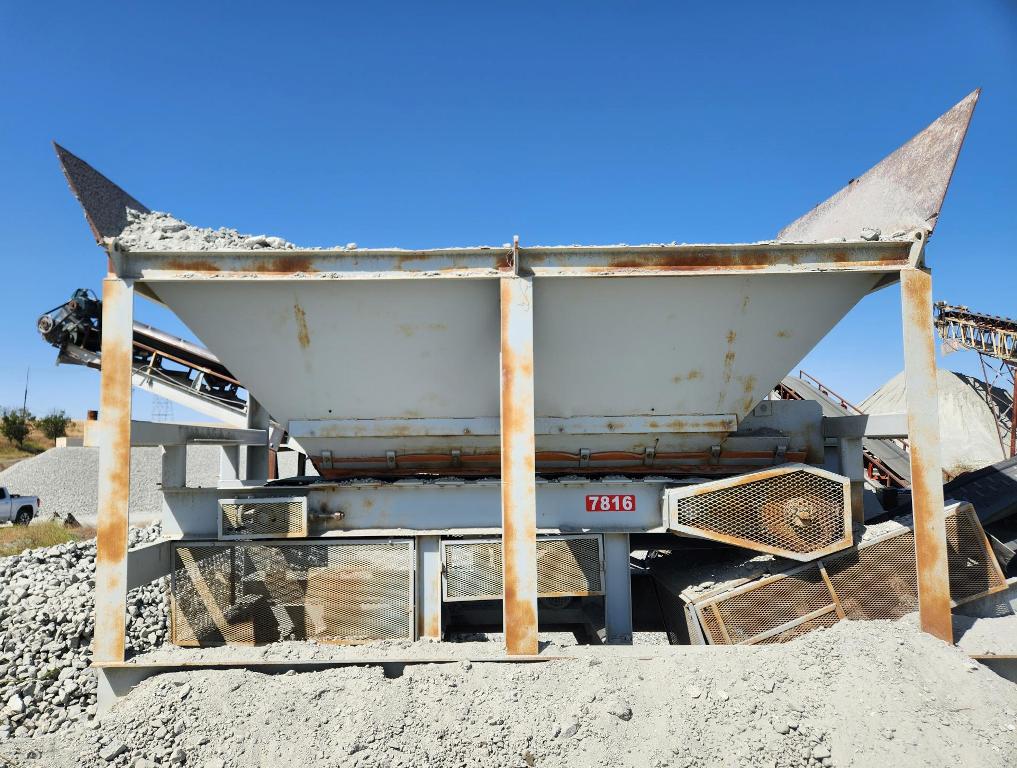

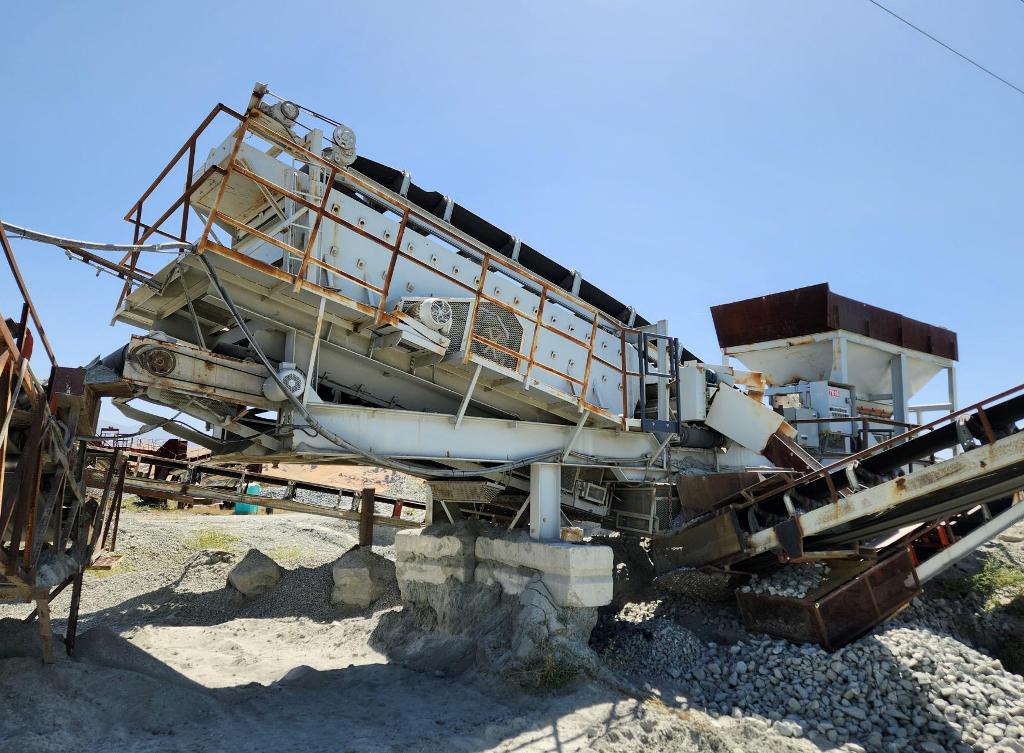

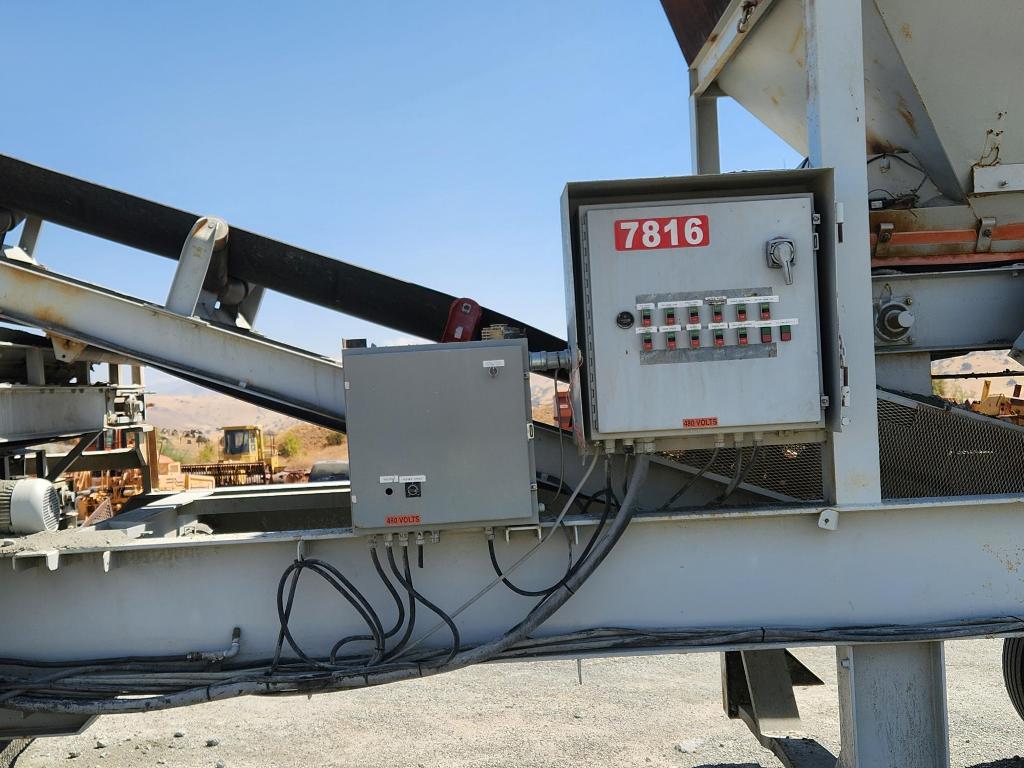

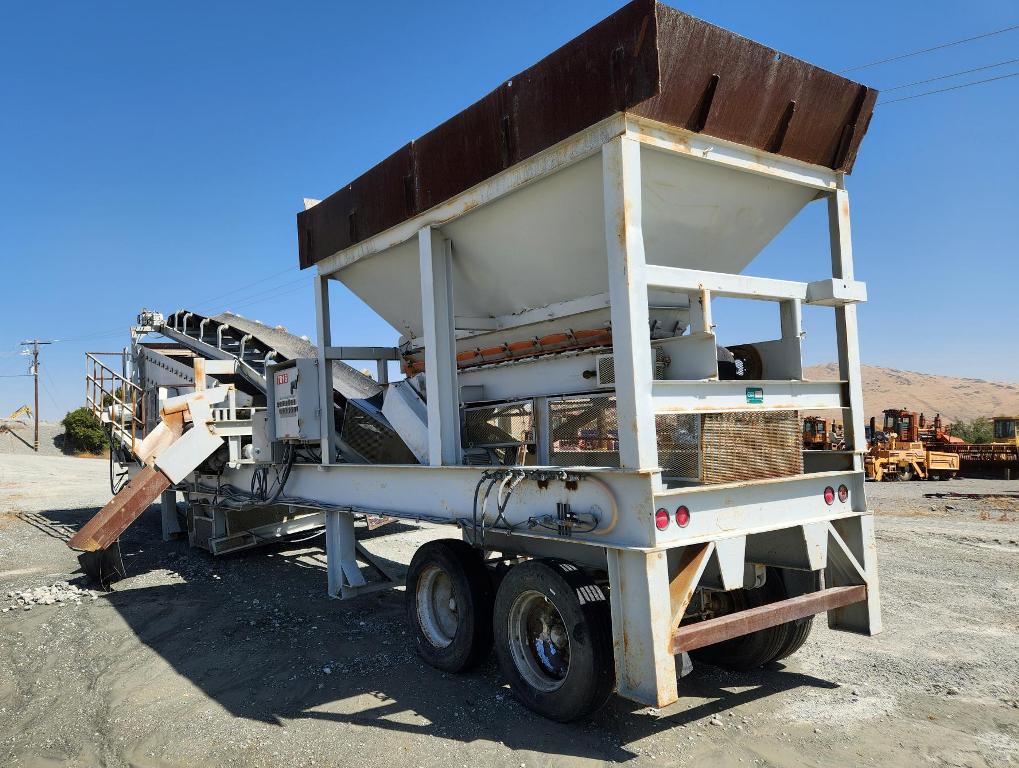

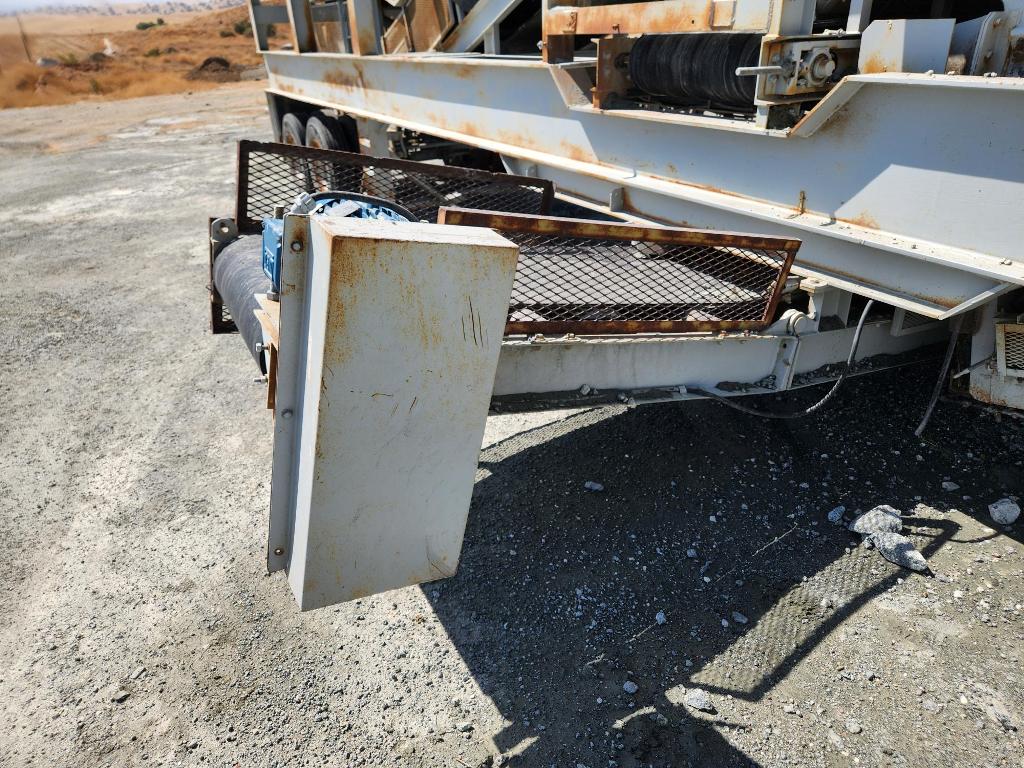

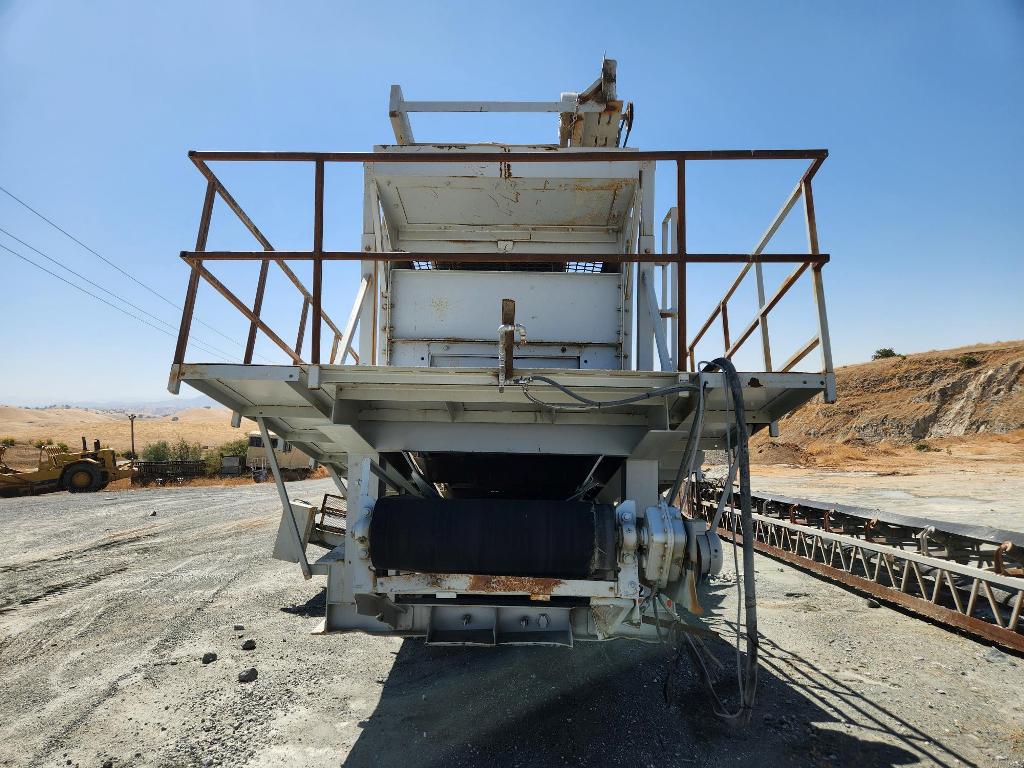

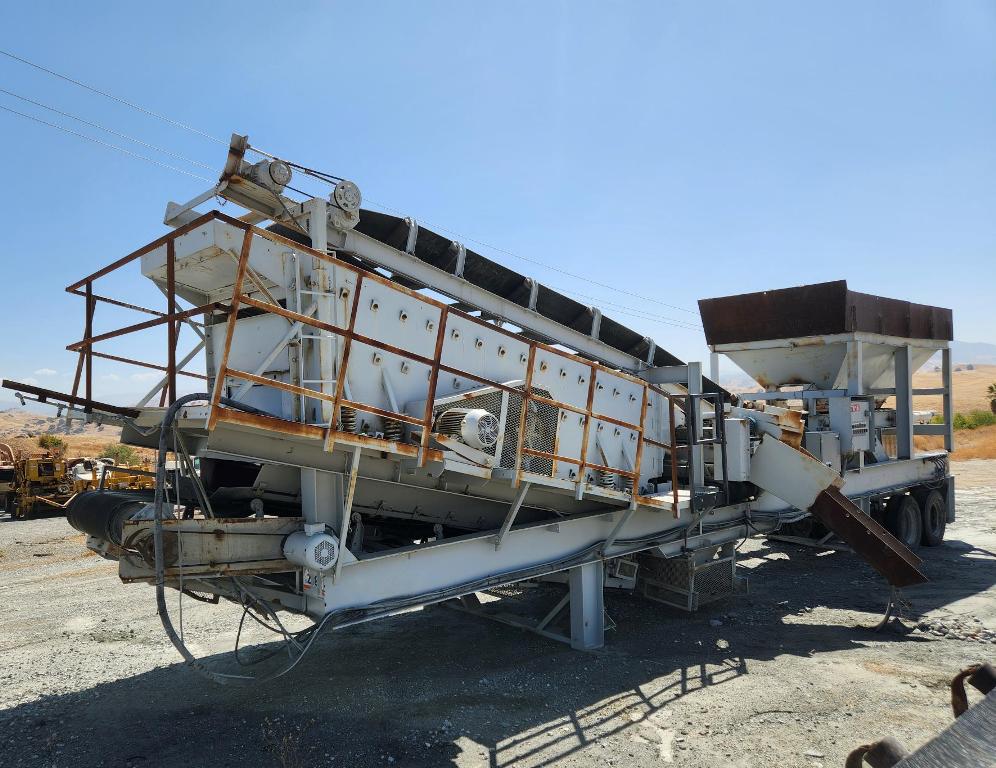

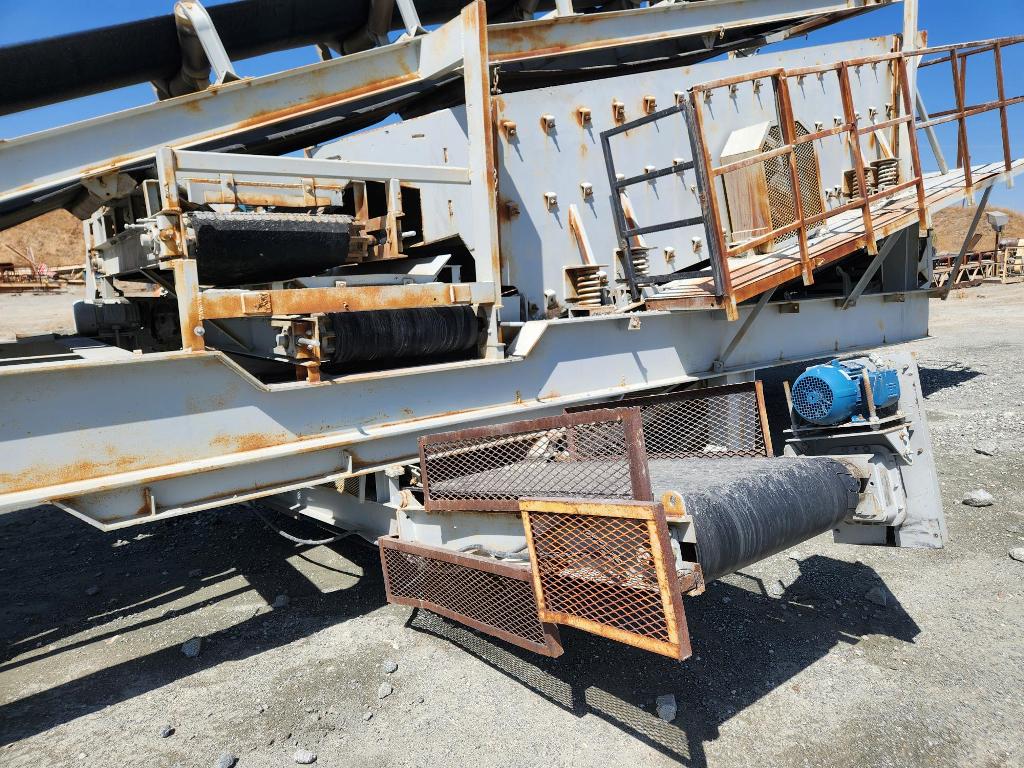

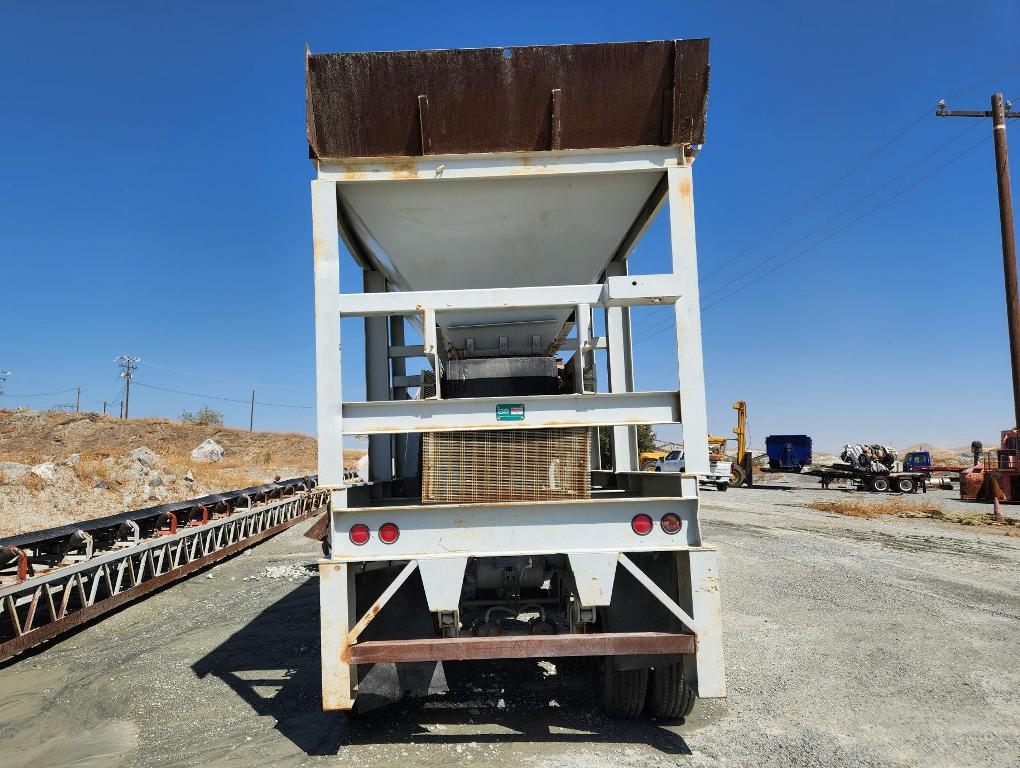

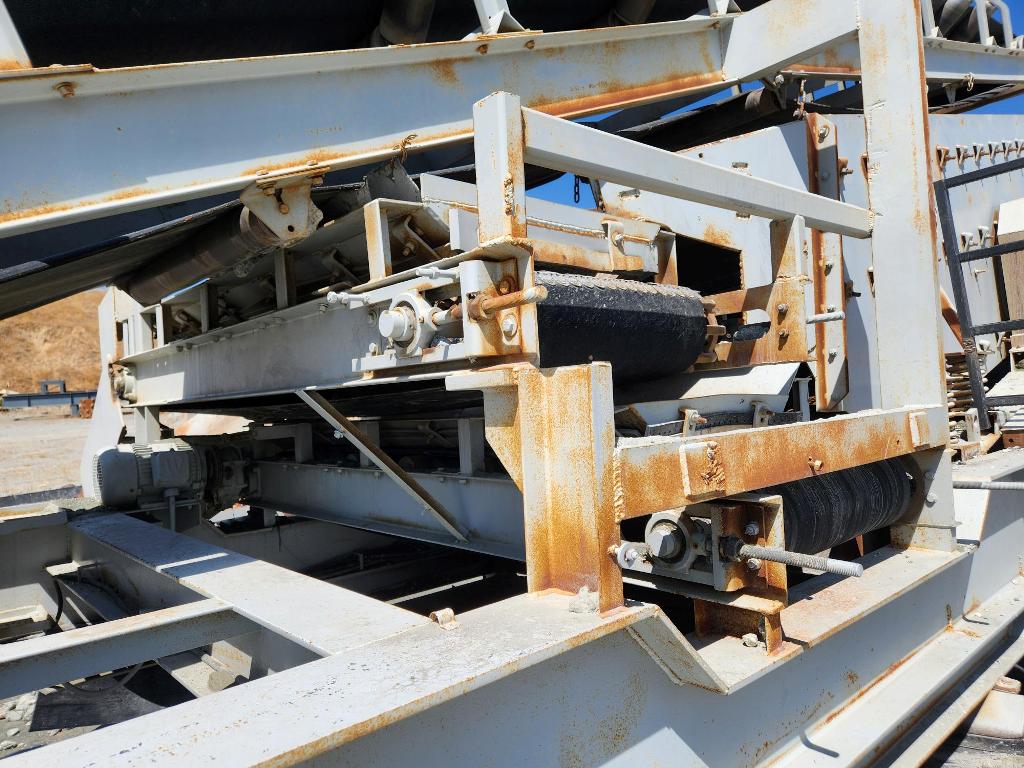

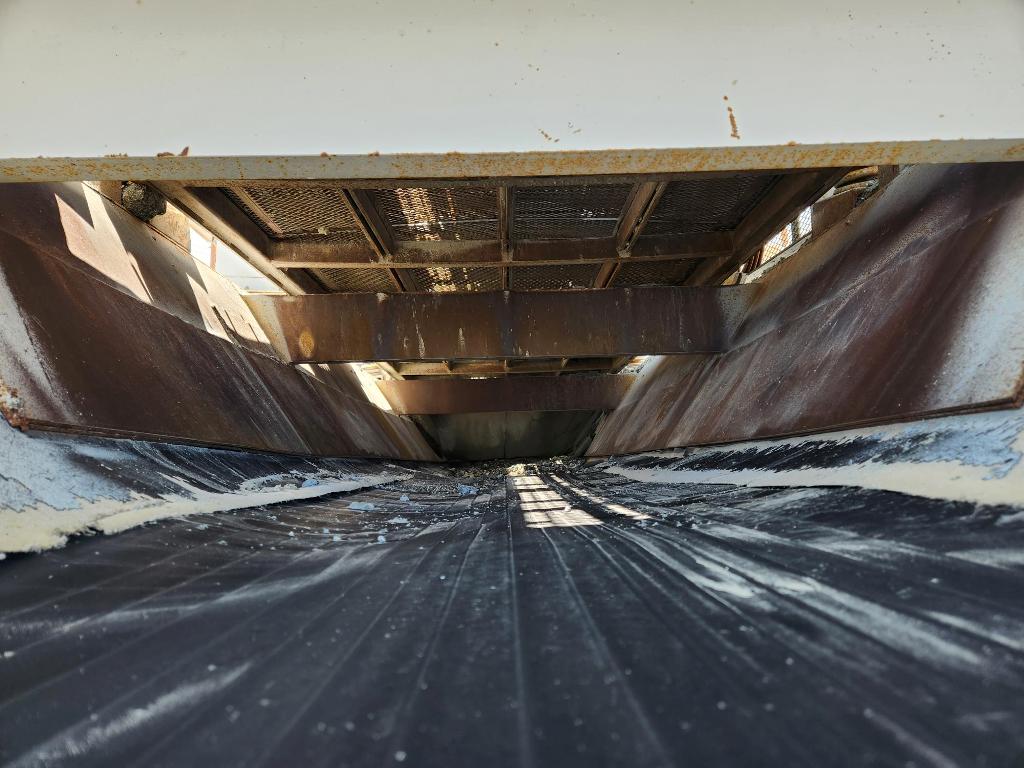

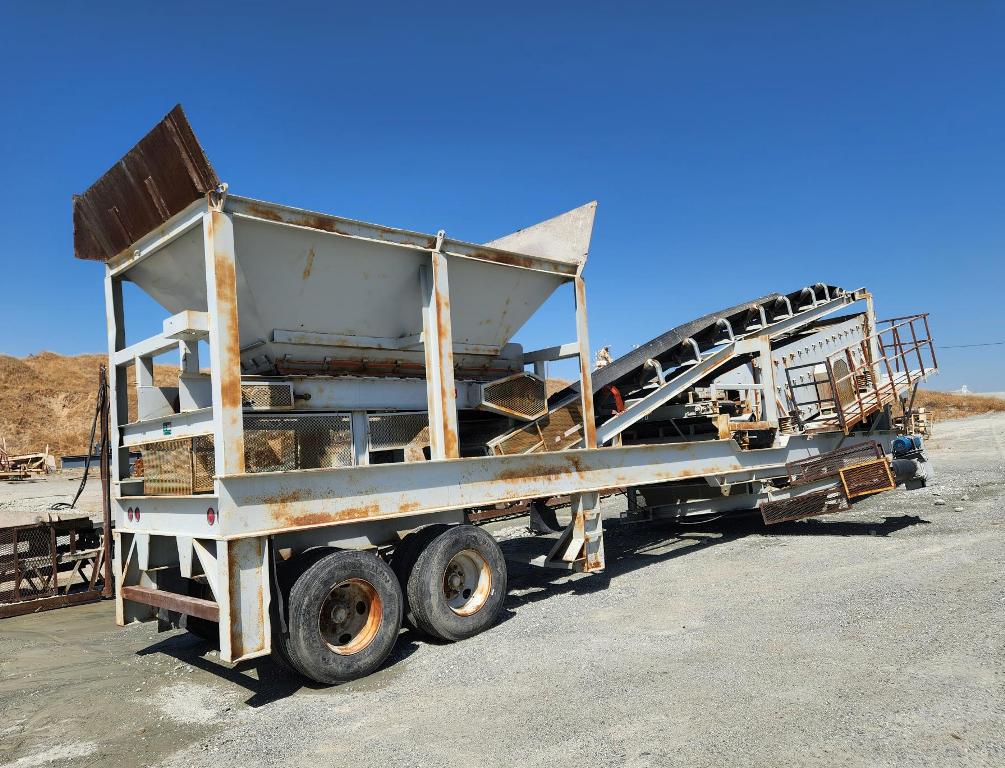

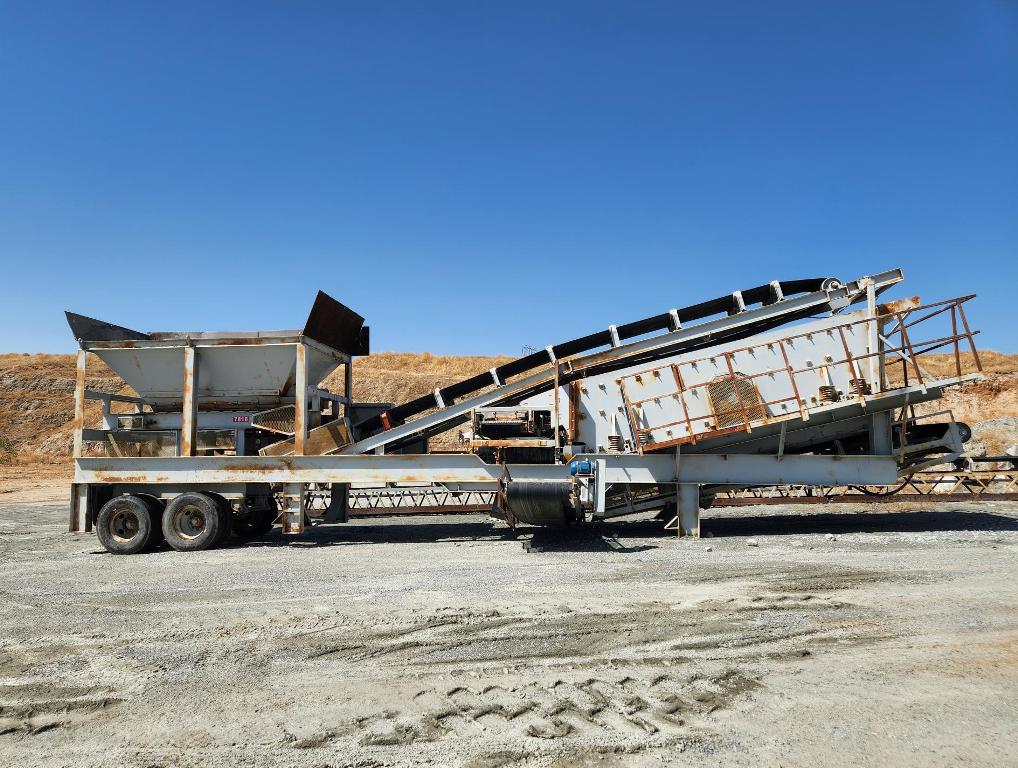

FabTec Portable “Contractor” Screening Plant, 5’ wide x 16’ long Three Deck Incline Vibrating Screen with 2” screens on top deck, 1” on center deck, 3/* Z screen on bottom deck, three 30” wide cross conveyors at discharge end, 42” wide under screen fines discharge conveyor, 8’ wide x 14’ long feed hopper with 30” wide variable speed belt feeder, 36” wide screen feed conveyor, 20 h.p. screen electric motor, V-Belt drive with guard, motor base; single shaft-two bearing grease lubricated vibrator assembly with external counterweights, steel coil isolation springs, conventional single crown screen support decks with side tension clamp rails, under screen hopper with 42” wide discharge conveyor, electric motor drive. Weather resistant steel electric motor control panel with variable speed controller for belt feeder and 11 separate starters for conveyors and support equipment. All mounted on an 18” deep I-Beam tandem axle trailer with walkways on three sides.

Used equipment……..Selling Price $75,000.00

Condition: Good.
