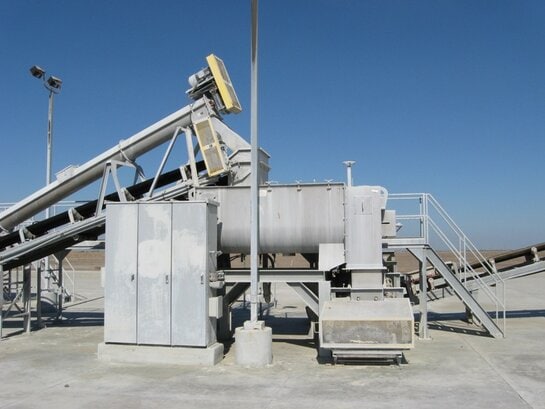

Chemco Systems Mdl D-7100 “Plow Blender” Material Mixing & Blending System for Uniform Mixing & Stabilization of Bio-Sludge, Chemicals, Industrial Products, Lime Treatment, Fertilizer, Compost, Sand, Finished Product Aggregates, Etc. at up to 250 tph. Complete plant includes:
1. Hopper – 8½’ wide x 20’ long, steep wall construction with 24” diameter stainless steel screw discharge conveyor, 25 h.p electric motor with solid state reversible and variable speed controller, shaft mounted gear reduction box, V-belt drive with guard, clamp down tarp cover system, support legs.
2. Hopper – 8½’ wide x 20’ long, steep wall construction with 16” diameter stainless steel screw discharge conveyor, 20 h.p electric motor with solid state reversible and variable speed controller, shaft mounted gear reduction box, V-belt drive with guard, clamp down tarp cover system, support legs.
3. Conveyor – 30” wide x 45’ long, 8” channel frame, 35 degree troughing idlers, rubber conveyor belting, electric motor, shaft mounted gear reduction box, V-belt drive with guard, support legs. (feeds blender from #1 hopper with 24” diameter screw conveyor)
4. Screw Conveyor – 12” diameter x 45’ long stainless steel, electric motor, shaft mounted gear reduction box, V-belt drive with guard, support legs. (feeds blender from #2 hopper with 16” diameter screw conveyor).
5. Chemco Systems Model D-7100 Continuous Flow “Plow Blender” – 6’ wide x 9’ long tub, twin shaft mixer with stainless steel plows, 75 h.p. Baldor electric motor / Eurodrive Model KA127 oil bath lubricated gearbox, Milltronics motion failure alarm, high temperature & speed sensors, adjustable weir gate at discharge end, steel fabricated stationary support structure; S/N 7006, shipped new December 2002.
6. Conveyor – 30” wide x 17’ long, 8” channel frame, 20 degree troughing idlers, rubber conveyor belting, electric motor, shaft mounted gear reduction box, V-belt drive with guard, support legs. (blender discharge conveyor).
7. Conveyor – 30” wide x 26’ long, 8” channel frame, 35 degree troughing idlers, rubber conveyor belting, electric motor, shaft mounted gear reduction box, V-belt drive with guard, support legs. (material transfer conveyor).

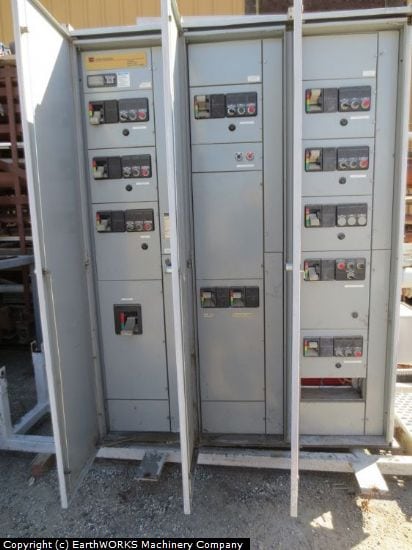

8. Cutler-Hammer Freedom Series 2100 Motor Control Center; 3 phase 480 Volt / 60 Hz system in free standing weather proof steal enclosure with main disconnect, across the line magnetic starters for all plant electric motors; two Fincor 6500 ASD solid state reversible and variable speed controllers for the two feeder motors; Milltronics Model MFA 4p motion failure alarm controller (warns of equipment malfunction and signals automated shut down).
9. Elevated Catwalk System throughout plant flow plan (steel fabricated).
Used equipment….Nine Item Package Selling Price $165,000.00
Truck loading is included in the selling price.
Condition: Overall good, low hours since new, all items painted with special corrosion resistant epoxy industrial paint. Equipment new in 2002.
| Price: | $145,000 |
|---|---|
| Availability: | In Stock |
| Location: | Central CA, USA |
